Identification and supply information

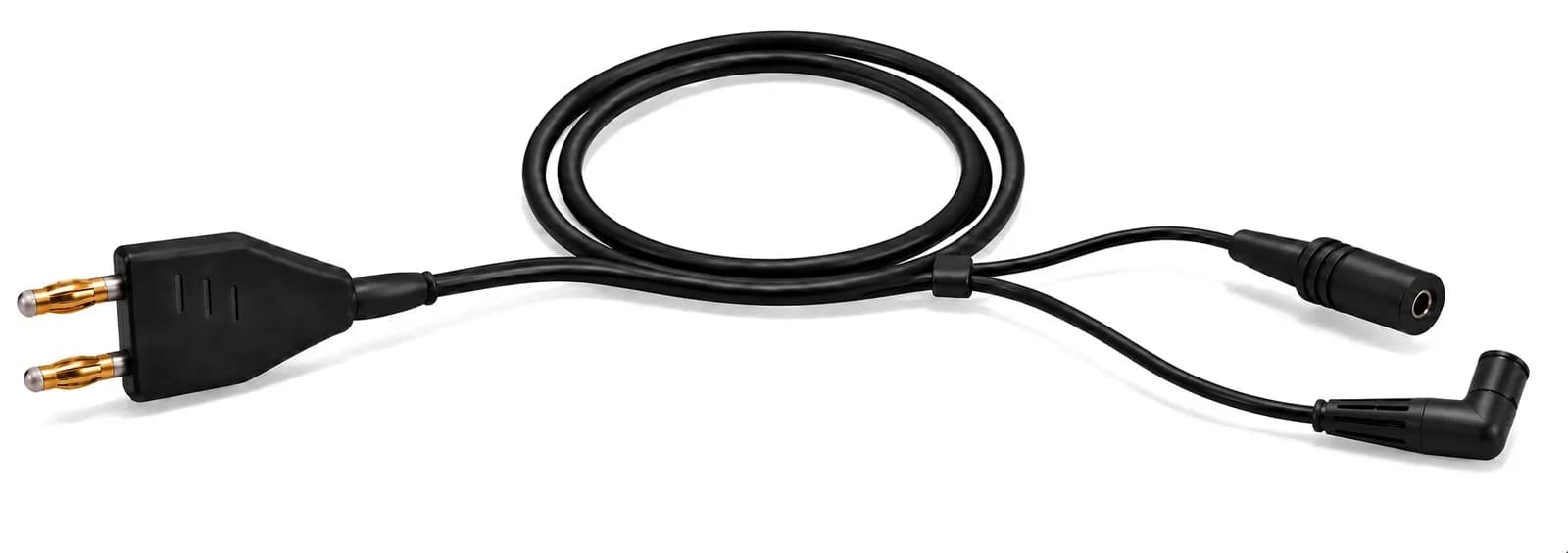

The EC0111 is a 3 m electrosurgical adapter cable made as a bonded twin lead. It links a generator socket to an instrument or cable with a different plug standard.
End A plugs into the generator side; the other end splits into two leads, B and C.

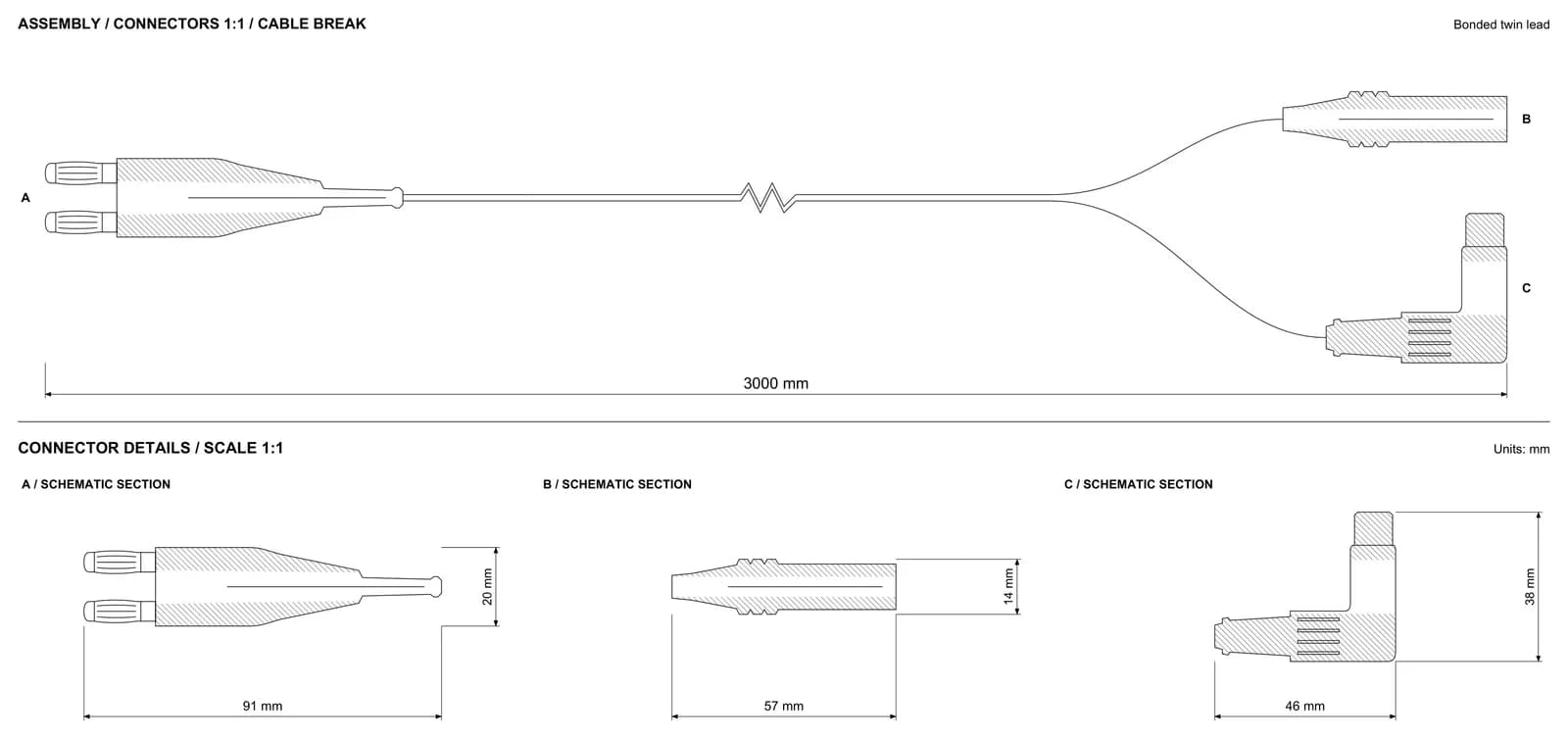

Connectors
- A: 2-pin Ø5.0 mm banana; pitch 12.5 mm (connector length 91 mm)
- B: Straight housing / axial cable entry (connector length 57 mm)
- C: Right-angle housing / slotted cable relief (connector length 46 mm)
Ordering
- Quote part number EC0111 with the quantity you need.
- Send the generator model, or a photo of its socket, so sales can confirm the match before the proforma invoice.
- A dimensioned drawing (PDF or DXF) is available on request.
