Identification and supply information

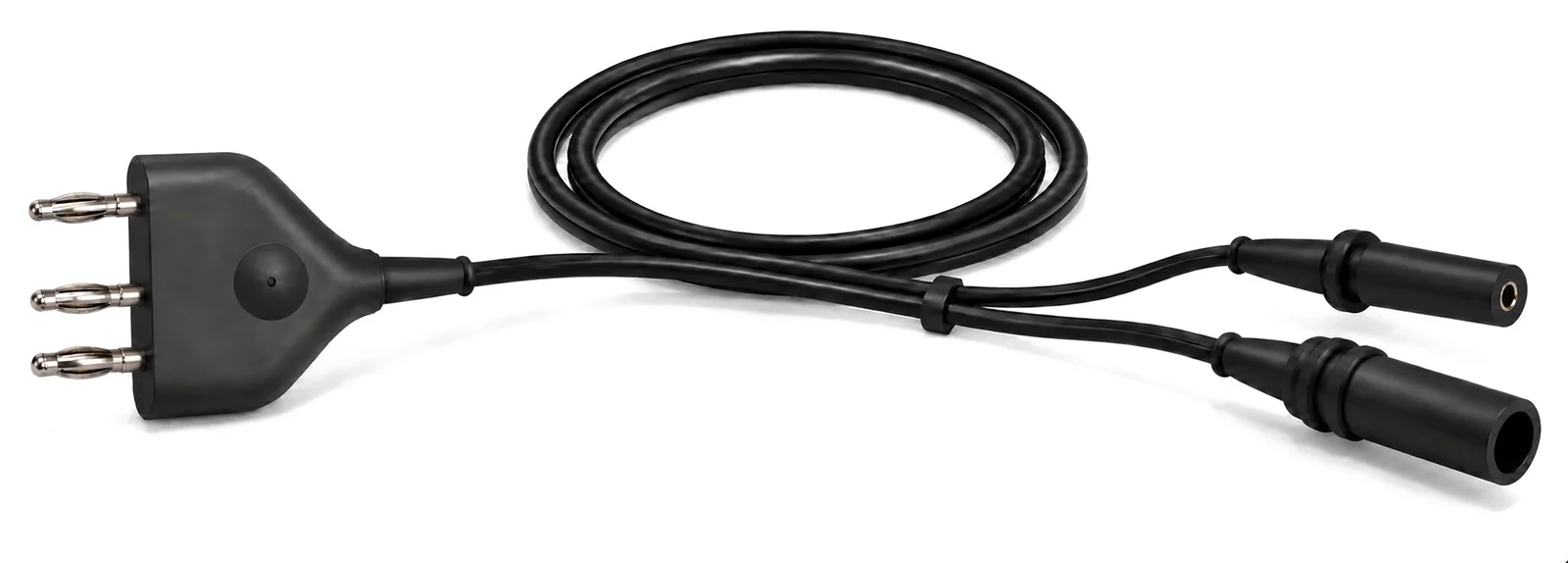

The EC0085 is a 3 m electrosurgical adapter cable made as a bonded twin lead. It links a generator socket to an instrument or cable with a different plug standard.
End A plugs into the generator side; the other end splits into two leads, B and C.

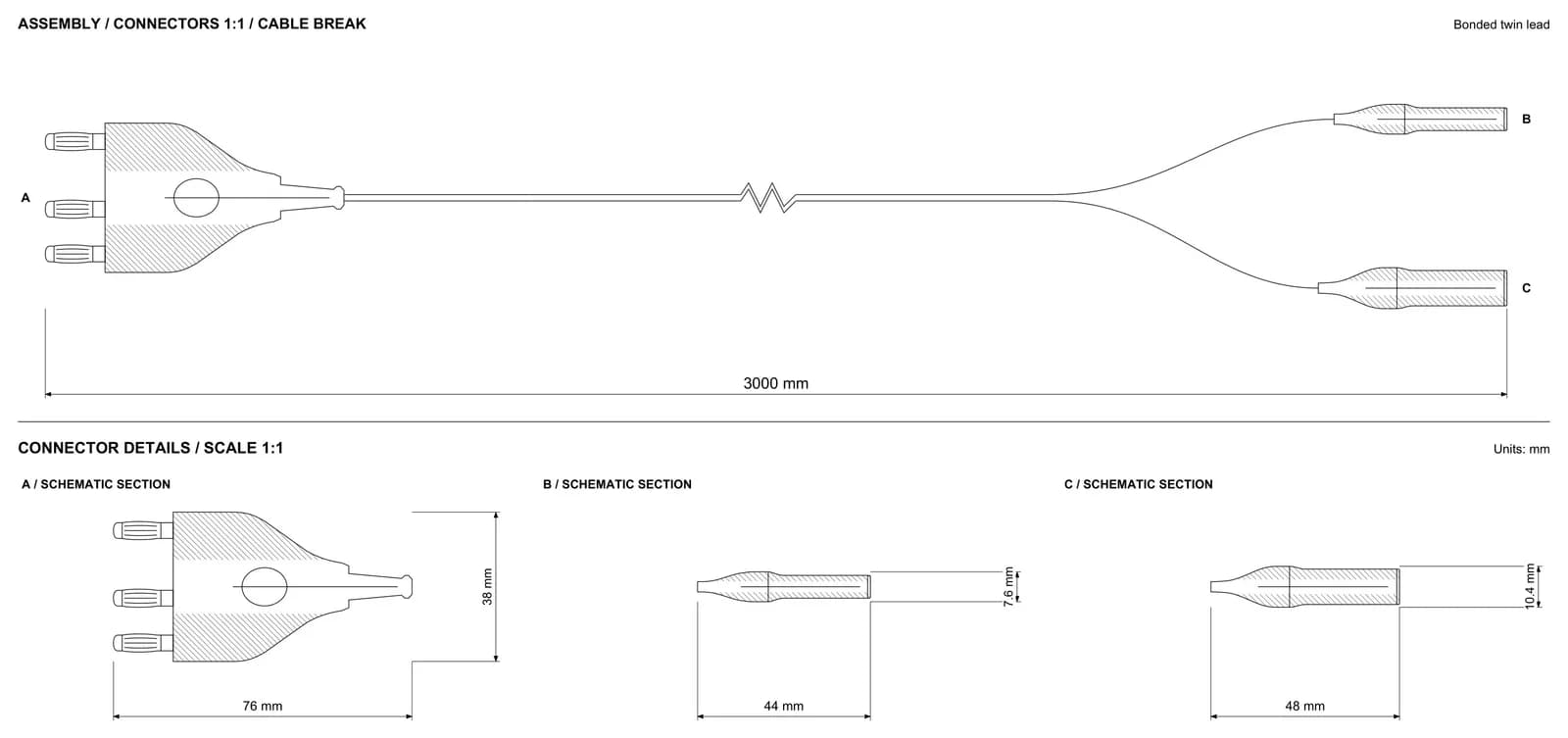

Connectors
- A: 3 × Ø4.0 mm banana pins; unequal pitch (connector length 76 mm)
- B: Ø2.5 mm crown-spring socket (connector length 44 mm)
- C: Ø2.0 mm shrouded banana plug (connector length 48 mm)
Ordering
- Quote part number EC0085 with the quantity you need.
- Send the generator model, or a photo of its socket, so sales can confirm the match before the proforma invoice.
- A dimensioned drawing (PDF or DXF) is available on request.
