HF Adapter Cable 3 m, 2 × Ø4 mm Banana Plugs to 2 × Ø4 mm Tube Sockets

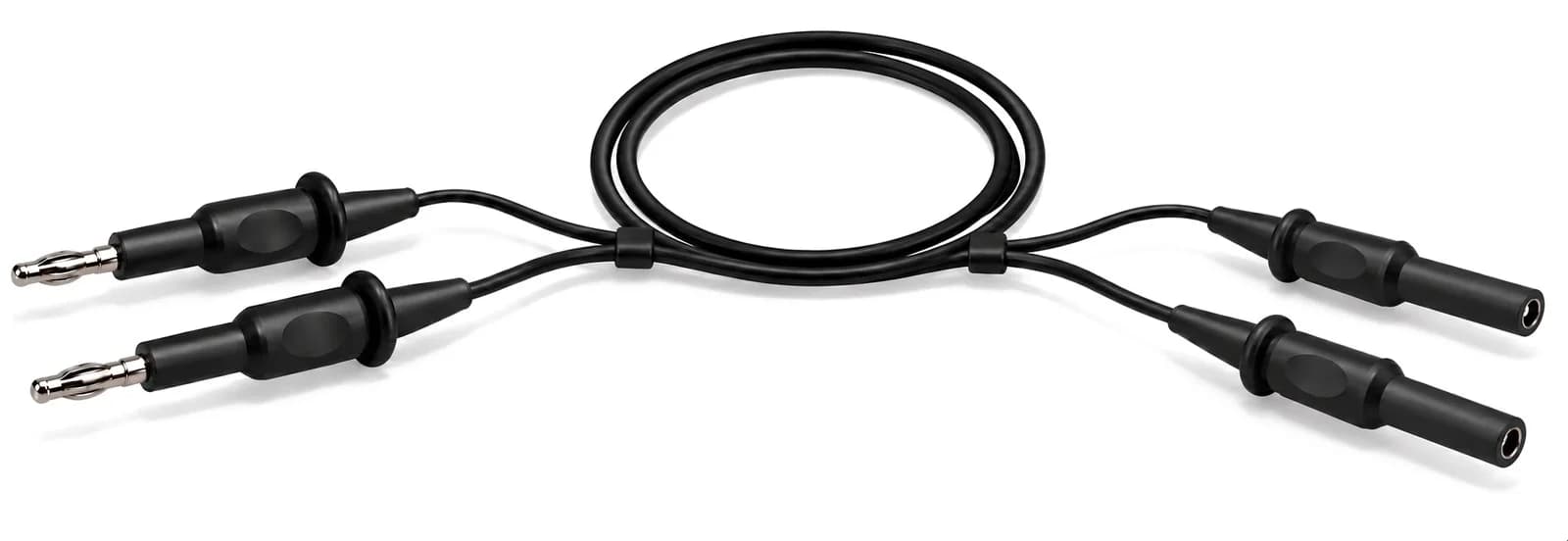

The EC0073 is a 3 m electrosurgical adapter cable made as a bonded twin lead. It links a generator socket to an instrument or cable with a different plug standard.

End A plugs into the generator side; the other end splits into two leads, B and C.

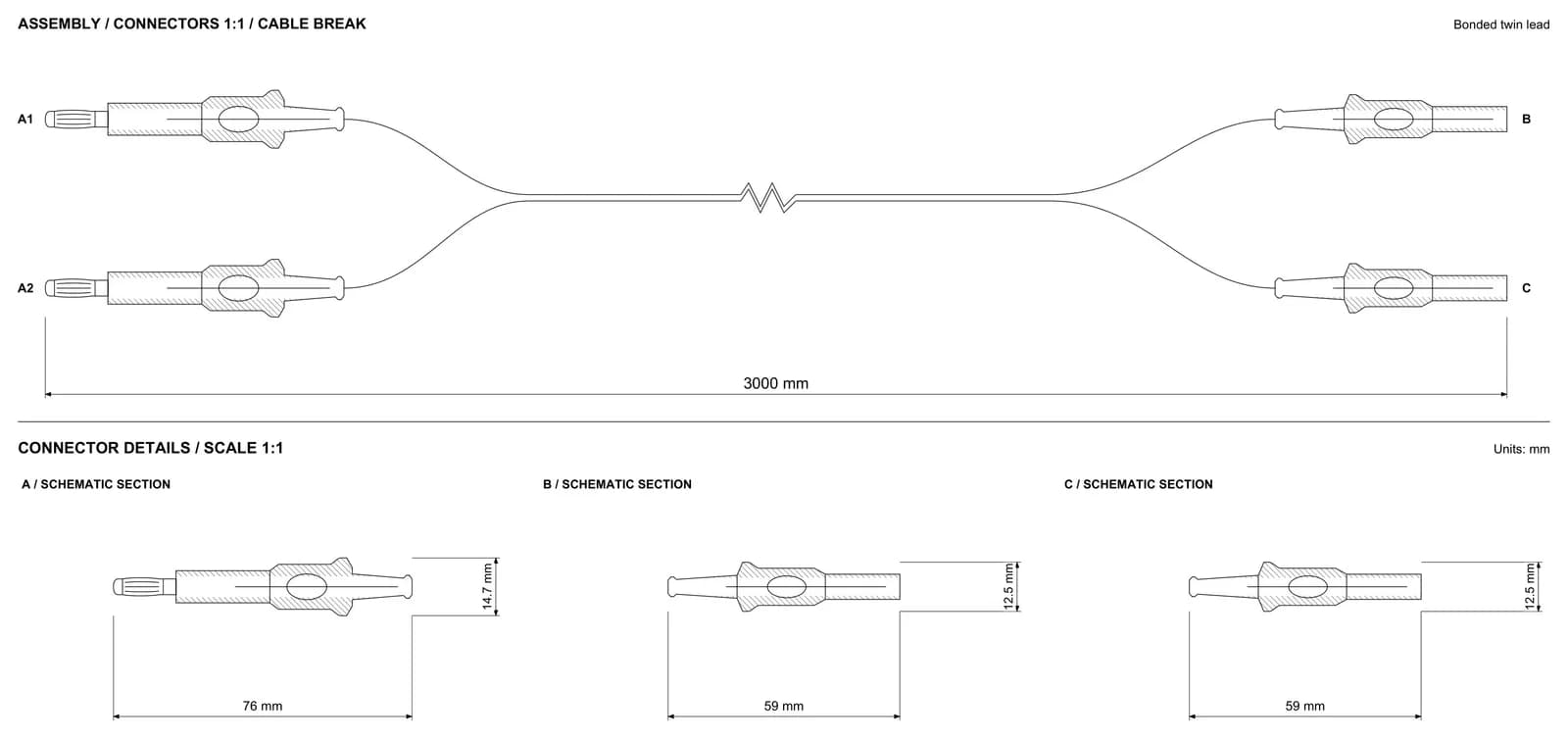

Connectors

• A: 2 × Ø4.0 mm separate banana plugs (connector length 76 mm)
• B: Ø4.0 mm copper-tube socket (connector length 59 mm)
• C: Ø4.0 mm copper-tube socket (connector length 59 mm)

Ordering

• Quote part number EC0073 with the quantity you need.
• Send the generator model, or a photo of its socket, so sales can confirm the match before the proforma invoice.
• A dimensioned drawing (PDF or DXF) is available on request.
